Low Pressure Fittings for Residential and Light Commercial HVAC Applications
Rectangular Duct
Rectangular Duct
End Cap
Duct shipped: Standard knocked down, Reinforced assembled.
Consult factory for custom sizes.
Rectangular Duct
A
B
L
Gauge
Part #
6
6
4'
26
2-06064
6
8
4'
26
2-06084
6
10
4'
26
2-06104
6
12
4'
24
2-06124
6
14
4'
24
2-06144
8
8
4'
26
2-08084
8
10
4'
26
2-08104
8
12
4'
24
2-08124
8
14
4'
24
2-08144
6
8
5'
26
2-06085
6
10
5'
26
2-06105
6
12
5'
24
2-06125
6
14
5'
24
2-06145
8
8
5'
26
2-08085
8
10
5'
26
2-08105
8
12
5'
24
2-08125
8
14
5'
24
2-08145

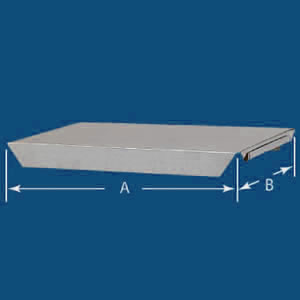

Rectangular Duct End Cap
A
B
Gauge
Part #
8
8
30
2-080883
10
8
30
2-100883
12
8
30
2-120883
14
8
30
2-140883
16
8
30
2-160883
18
8
30
2-180883
20
8
30
2-200883
22
8
30
2-220883
24
8
30
2-240883
20
10
26
2-201083
25
10
26
2-251083
Other sizes available.
Reducing transitions are available.
Please consult factory.
Other sizes available.

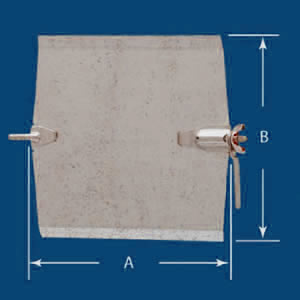

Volume Damper

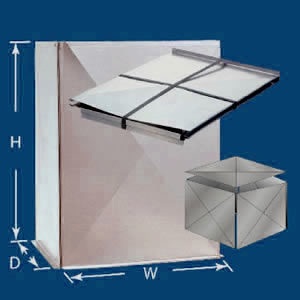

Plenum with Cap
Dampers come with all needed hardware.
Kits sold knocked down. Factory assembled available.
Volume Damper
A
B
Gauge
Part #
8
8
26
2-0808771
10
8
26
2-1008771
12
8
26
2-1208771
14
8
26
2-1408771
16
8
26
2-1608771
18
8
26
2-1808771
20
8
26
2-2008771
22
8
26
2-2208771
24
8
24
2-2408771
20
10
26
2-2010771
25
10
24
2-2510771
Plenum with Cap
W
D
H
Gauge
Part #
14
20
24
24
2-142447
16
20
24
24
2-162447
18
20
24
24
2-182447
14
20
36
24
2-143647
16
20
36
24
2-163647
18
20
36
24
2-183647
14
20
48
24
2-144847
16
20
48
24
2-164847
18
20
48
24
2-184847
Other sizes available.
Other sizes available.
Flat Slip
1/2" Standing Slip
Click here for more details
Click here for more details
Flat Slip
Size
Gauge
Part #
8"
24
2-0873
10"
24
2-1073
12"
24
2-1273
14"
24
2-1473
16"
24
2-1673
60"
26
2-6073
1/2" Standing Slip
Size
Gauge
Part #
16"
24
2-1677
18"
24
2-1877
20"
24
2-2077
22"
24
2-2277
24"
24
2-2477
25"
24
2-2577
60"
26
2-6077
Flat Drive
Click here for more details
Flat Drive
Size
Gauge
Part #
8"
26
2-0833
10"
26
2-1033
12"
26
2-1233
60"
26
2-6033
Note: 2" bead added to any fitting, no charge upon request.
