PVS 90 Degree Taps and Tees
*PVS Swedge Saddle *PVS Boot Saddle *PVS Shoe Tap
* Available with installed damper
PVS 90º Swedge Saddle
Standard Gauge Highlighted
Priced By Branch
Size 26 Ga. 24 Ga. 22 Ga. Std. Part #
3" 8.34     3-0380
4" 8.34     3-0480
5" 8.45     3-0580
6" 8.45     3-0680
7" 8.75     3-0780
8" 8.75     3-0880
9" 15.51     3-0980
10" 15.51     3-1080
11" 20.74     3-1180
12"   20.74   3-1280
14"   27.31   3-1480
15"   28.70   3-1580
16"   35.37   3-1680
18"     89.12 3-1880
20"     101.96 3-2080
22"     114.82 3-2280
24"     162.42 3-2480
PVS 90º Boot Saddle
Standard Gauge Highlighted
Priced By Branch
Size 26 Ga. 24 Ga. 22 Ga. Std. Part #
3" 9.32     3-03801
4" 9.32     3-04801
5" 9.32     3-05801
6" 9.32     3-06801
7" 9.66     3-07801
8" 9.66     3-08801
9" 17.14     3-09801
10" 17.14     3-10801
11" 22.91     3-11801
12"   22.91   3-12801
14"   30.18   3-14801
15"   39.06   3-15801
16"   39.06   3-16801
18"     98.46 3-18801
20"     112.65 3-20801
22"     126.84 3-22801
24"     179.44 3-24801
PVS 90º Shoe Tap
Standard Gauge Highlighted
Priced By Branch
Size 26 Ga. 24 Ga. 22 Ga. Std. Part #
3" 20.27     3-0378
4" 20.27     3-0478
5" 20.27     3-0578
6" 20.27     3-0678
7" 22.64     3-0778
8" 22.64     3-0878
9" 28.63     3-0978
10" 28.63     3-1078
11" 34.63     3-1178
12"   49.52   3-1278
14"   56.70   3-1478
15"   69.30   3-1578
16"   75.60   3-1678
18"     88.20 3-1878
20"     119.70 3-2078
22"     135.45 3-2278
24"     152.25 3-2478
PVS Tee

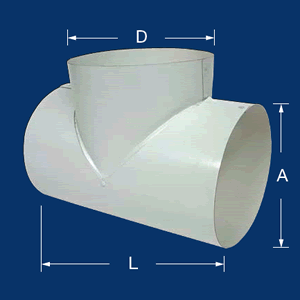

PVS 90º Tee "81 Series"
Stock Standard Highlighted
Tap Size (D)

Example: 10 X 10 X 6 Tee part number would be 3-100681*

  Size 4" 6" 8" 10" 12" 14" 15" 16" 18" 20" 22" 24"
  6" 28.64 19.41
B 8" 29.53 29.64 20.29
A 10" 30.30 30.42 30.74 21.07
R 12" 38.86 38.98 39.30 46.77 29.63
R 14" 48.62 48.73 49.06 56.55 62.31 39.39
E 15" 50.95 51.06 51.38 58.86 64.54 71.90 41.15
L 16" 60.98 61.10 61.42 68.89 74.68 81.94 83.45 51.14
  18" 109.66 109.77 110.10 117.59 123.35 130.62 132.15 139.52 100.42
(A) 20" 162.74 162.92 163.24 170.72 176.50 183.76 185.28 192.65 252.04 153.57
  22" 197.60 197.72 198.04 205.52 211.30 218.55 220.08 227.46 286.85 301.04 186.36
  24" 233.95 234.08 234.40 241.88 247.66 254.93 256.44 263.82 323.20 337.40 351.60 224.73
PVS Reducing Tee
PVS 90º Reducing Tee "813 Series"
Dimensions to be listed in order of : A,B,D. Priced by A and D
Tap Size (D)

Example: 10 x 8 x 6 Reducing Tee part number would be 3-1006813*

  Size 4" 6" 8" 10" 12" 14" 15" 16" 18" 20" 22" 24"
  8" 44.67 44.80 35.46
B 10" 48.85 48.96 49.28 39.62
A 12" 64.86 64.97 65.30 72.79 55.64
R 14" 92.67 92.78 93.10 100.58 106.36 83.44
R 15" 95.63 95.76 96.08 103.56 109.34 116.61 86.42
E 16" 110.75 110.88 111.20 118.68 124.46 131.73 133.24 101.54
L 18" 180.32 180.45 180.75 188.24 194.03 201.28 202.80 210.18 171.09
  20" 248.08 248.26 248.58 256.06 261.84 269.09 270.62 278.00 337.39 238.92
(A) 22" 298.00 298.12 298.44 305.91 311.70 318.96 320.47 327.87 387.24 401.44 288.78
  24" 368.06 368.19 368.49 375.98 381.77 389.02 390.54 397.92 457.30 471.51 485.70 358.83

* 3-Designates PVS Coated Material
