PVS 45 Degree Taps and Tees
*PVS Swedge Saddle *PVS Boot Saddle
* Available with installed damper
PVS 45 º Swedge Saddle
Standard Gauge Highlighted
Priced By Branch
Size 26 Ga. 24 Ga. 22 Ga. Std. Part #
3" 9.88     3-0350
4" 9.88     3-0450
5" 10.28     3-0550
6" 10.28     3-0650
7" 12.59     3-0750
8" 12.59     3-0850
9" 18.99     3-0950
10" 18.99     3-1050
11" 25.37     3-1150
12"   25.37   3-1250
14"   31.95   3-1450
15"   41.33   3-1550
16"   44.30   3-1650
18"     106.40 3-1850
20"     123.69 3-2050
22"     139.29 3-2250
24"     197.02 3-2450
PVS 45 º Boot Saddle
Standard Gauge Highlighted
Priced By Branch
Size 26 Ga. 24 Ga. 22 Ga. Std. Part #
3" 10.98     3-03501
4" 10.98     3-04501
5" 11.42     3-05501
6" 11.42     3-06501
7" 13.99     3-07501
8" 13.99     3-08501
9" 21.09     3-09501
10" 21.09     3-10501
11" 28.18     3-11501
12"   28.18   3-12501
14"   37.11   3-14501
15"   48.05   3-15501
16"   48.05   3-16501
18"     123.72 3-18501
20"     137.43 3-20501
22"     154.75 3-22501
24"     218.92 3-24501

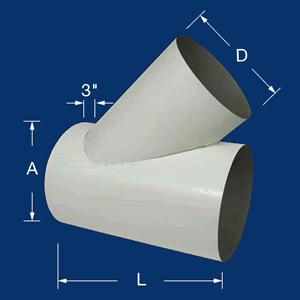

PVS 45 º Tee "51 Series"
Stock Standard Highlighted
Tap Size (D)

Example: 10 X 10 X 6 Lateral part number would be 3-100651*

  Size 4" 6" 8" 10" 12" 14" 15" 16" 18" 20" 22" 24"
  6" 30.39 30.84
B 8" 31.28 31.72 34.29
A 10" 32.06 32.49 35.06 42.18
R 12" 40.61 41.06 43.62 50.74 57.82
R 14" 50.39 50.82 53.38 60.49 67.58 76.52
E 15" 52.70 53.14 55. 71 62.82 69.90 78.83 80.70
L 16" 62.73 63.18 65.74 72.86 79.94 88.89 90.73 99.86
  18" 111.43 111,86 114.42 121.53 128.62 137.56 139.43 148.54 224.18
(A) 20" 164.56 165.00 167.57 174.68 181.76 190.69 192.56 201.68 277.33 291.02
  22" 199.36 199.79 202.36 209.48 216.57 225.50 227.36 236.47 312.12 325.82 343.14
  24" 235.72 236.17 238.71 245.84 252.92 261.86 263.72 272.85 348.47 362.18 379.50 442.06

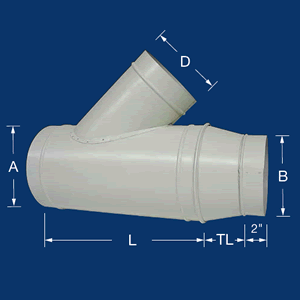

PVS 45 º Reducing Lateral "513 Series"
Dimensions to be listed in order of : A,B,D. Priced by A and D
Tap Size (D)

Example: 10 X 8 X 6 Reducing Lateral part number would be 3-1006513*

  Size 4" 6" 8" 10" 12" 14" 15" 16" 18" 20" 22" 24"
  8" 46.44 46.89 49.45
B 10" 50.60 51.03 53.59 60.72
A 12" 66.61 67.06 69.62 76.73 83.82
R 14" 94.43 94.86 97.43 104.54 111.62 120.57
R 15" 97.40 97.85 100.41 107.52 114.60 123.54 125.40
E 16" 112.52 112.97 115.53 122.64 129.72 138.67 140.52 149.65
L 18" 182.08 182.52 185.08 192.19 199.28 208.22 210.08 219.20 294.84
  20" 249.90 250.35 252.91 260.02 267.11 276.04 277.90 287.03 362.67 376.36
(A) 22" 299.75 300.19 302.75 309.88 316.96 325.89 327.75 336.87 412.51 426.22 443.53
  24" 369.82 370.27 372.82 379.95 387.03 397.82 397.82 406.95 482.58 496.29 513.60 576.17

* 3-Designates PVS Coated Material
