| Part numbers shown represent Large End (D2). The Small End (D1) must be specified when ordering. Example: When ordering a 8x6 Eccentric Reducer, the standard part number shown below is 3-083413XX. Specifying the required D1 changes the part number to 3-08341306. |

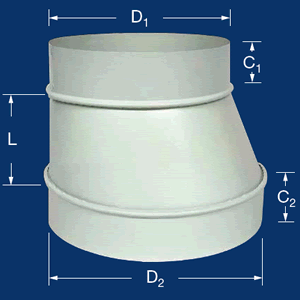

| Eccentric Reducer |
| D2 |
C1 |
C2 |
L |
Gauge |
Part # |
| 6 |
2 |
2 |
4 |
26 |
3-063413XX |
| 7 |
2 |
2 |
4 |
26 |
3-073413XX |
| 8 |
2 |
2 |
4 |
26 |
3-083413XX |
| 9 |
2 |
2 |
4 |
26 |
3-093413XX |
| 10 |
2 |
2 |
4 |
26 |
3-103413XX |
| 12 |
2 |
2 |
4 |
24 |
3-123413XX |
| 14 |
2 |
2 |
4 |
24 |
3-143413XX |
| 16 |
2 |
2 |
4 |
24 |
3-163413XX |
| 18 |
2 |
2 |
4 |
22 |
3-183413XX |
| 20 |
2 |
2 |
4 |
22 |
3-203413XX |
| 22 |
2 |
2 |
4 |
22 |
3-223413XX |
| 24 |
2 |
2 |
4 |
22 |
3-243413XX |
| XX denotes D1 |
|

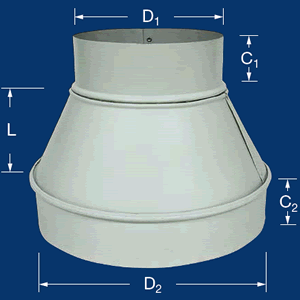

| Concentric Reducer |
| D2 |
C1 |
C2 |
L |
Gauge |
Part # |
| 6 |
2 |
2 |
4 |
26 |
3-06413XX |
| 7 |
2 |
2 |
4 |
26 |
3-07413XX |
| 8 |
2 |
2 |
4 |
26 |
3-08413XX |
| 9 |
2 |
2 |
4 |
26 |
3-09413XX |
| 10 |
2 |
2 |
4 |
26 |
3-10413XX |
| 12 |
2 |
2 |
4 |
24 |
3-12413XX |
| 14 |
2 |
2 |
4 |
24 |
3-14413XX |
| 16 |
2 |
2 |
4 |
24 |
3-16413XX |
| 18 |
2 |
2 |
4 |
22 |
3-18413XX |
| 20 |
2 |
2 |
4 |
22 |
3-20413XX |
| 22 |
2 |
2 |
4 |
22 |
3-22413XX |
| 24 |
2 |
2 |
4 |
22 |
3-24413XX |
| XX denotes D1 |
|
| Developed for underground HVAC, our PVS or Vinyl-coated Spiral pipe and Fittings have gained wide acceptance in the Chemical & Exhaust market as well. 4 x 1 coated has become the standard for underground heating and air conditioning systems with a 4 x 4 coating for extreme duty applications. |
| Note: 2" bead added to any fitting, no charge upon request. |
